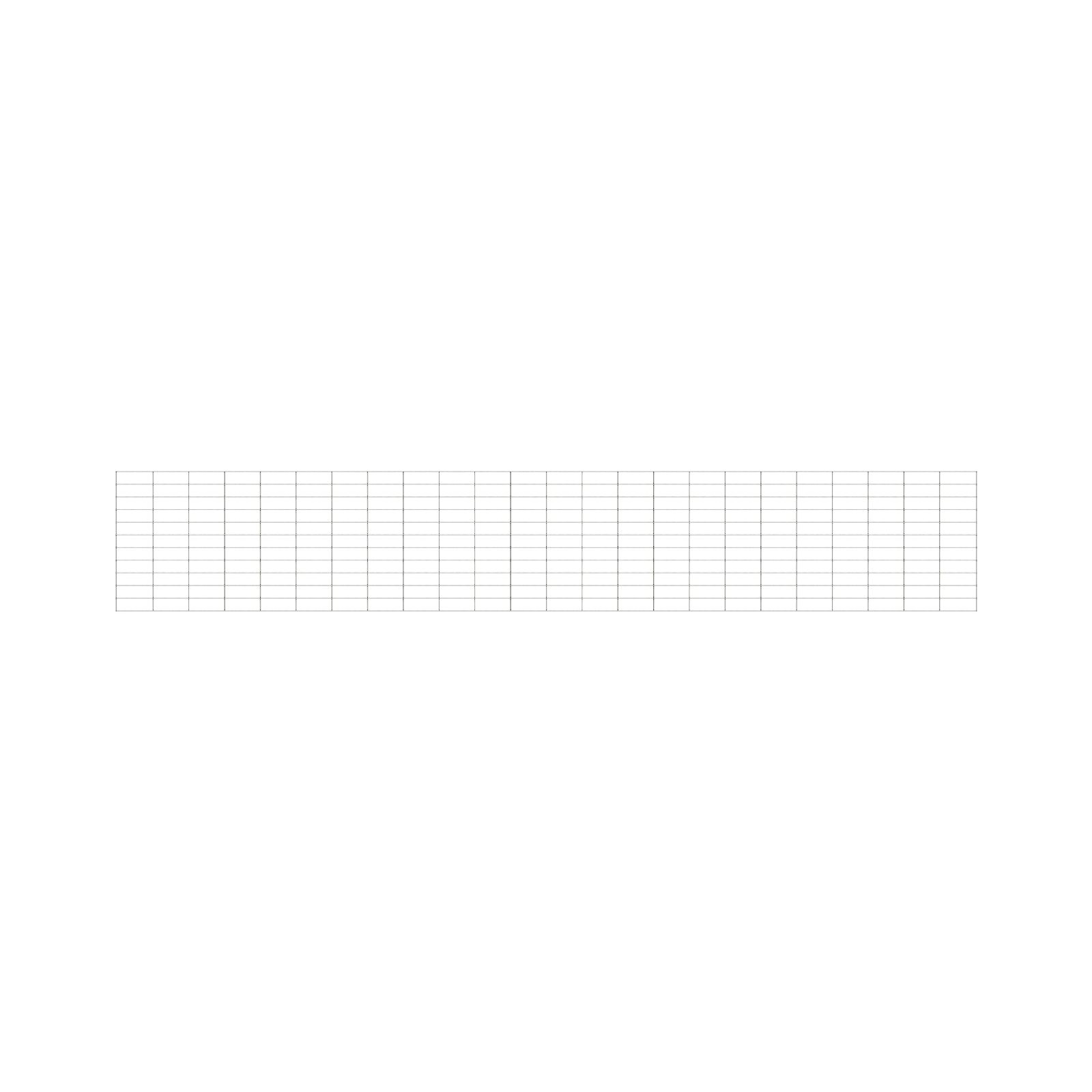

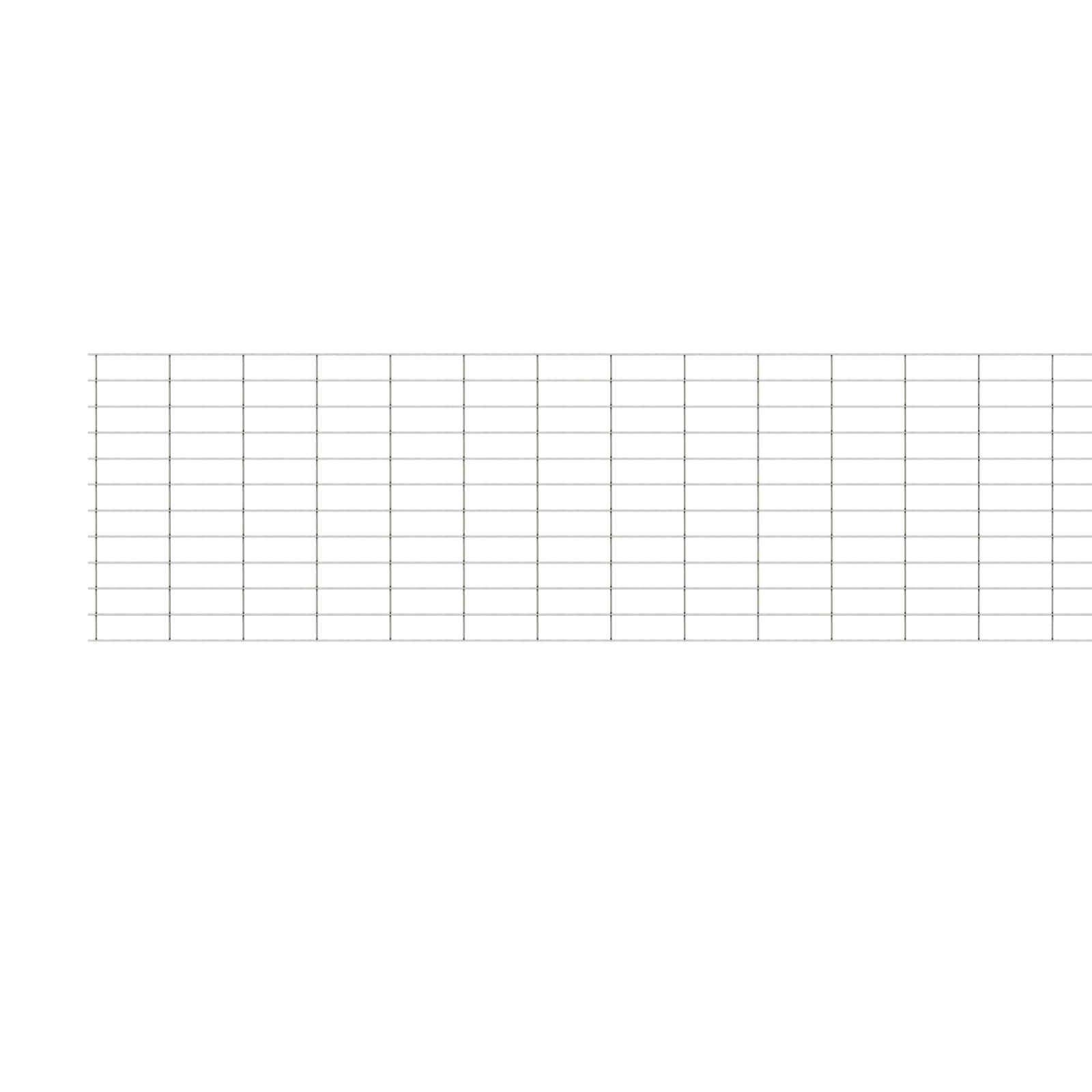

Sheep Yard Mesh
- Made from premium-grade wire
- Economical cost for a quality product
- Flush welded outside edges
- 6 Metre length
- Made in Australia
Product Details
Murray Sheep Yard Mesh is manufactured flush with the outside edge of the perimeter wires at our Albury Manufacturing facility in regional Australia and available in four grades.
Light: 900mm high – 9 x 5mm line wires with the top two vertical apertures set at 150mm and lower six 100mm. 4mm horizontal cross wires at 250mm aperture.
Medium: 5mm wire with vertical apertures at 100mm and horizontal apertures set at 250mm.
Also produced in a 5.6mm wire for special orders.
Heavy: 5mm wire with vertical apertures at 100mm and horizontal apertures set at 200mm.
Extra Heavy: 5mm wire with vertical apertures at 100mm and horizontal apertures set at 150mm.
Specifications
Product Name | Product Code | Aperture (mm) | Width (mm) | Length (m) | Nom. Wire Dia. (mm) | Weight (kg) | Sheep Yard Mesh | ASYM1 | 100 x 250 | 900 | 6 | 5.0 | 12.7 | Sheep Yard Mesh | ASYM2 | 100 x 250 | 1100 | 6 | 5.0 | 15.3 | Sheep Yard Mesh | ASYM3 | 100 x 200 | 900 | 6 | 5.0 | 13.5 | Sheep Yard Mesh | ASYM4 | 100 x 200 | 1100 | 6 | 5.0 | 16.3 | Sheep Yard Mesh | ASYM5 | 100 x 150 | 900 | 6 | 5.0 | 14.9 | Sheep Yard Mesh | ASYM6 | 100 x 150 | 1100 | 6 | 5.0 | 18 | Sheep Yard Mesh | ASYM7 | 100 x 250 | 900 | 6 | 5.6 | 15.8 |
---|
