WR I-Stay Mesh Gates
- All pipe is a uniform 25NB
- 1145mm high, 830-4800mm wide
- 5mm galvanised wire
- 200mm horizontal x 100mm vertical aperture
- Pipe galvanised inside and out
- Supplied with our ‘Shut the gate, mate!’ sign
Product Details

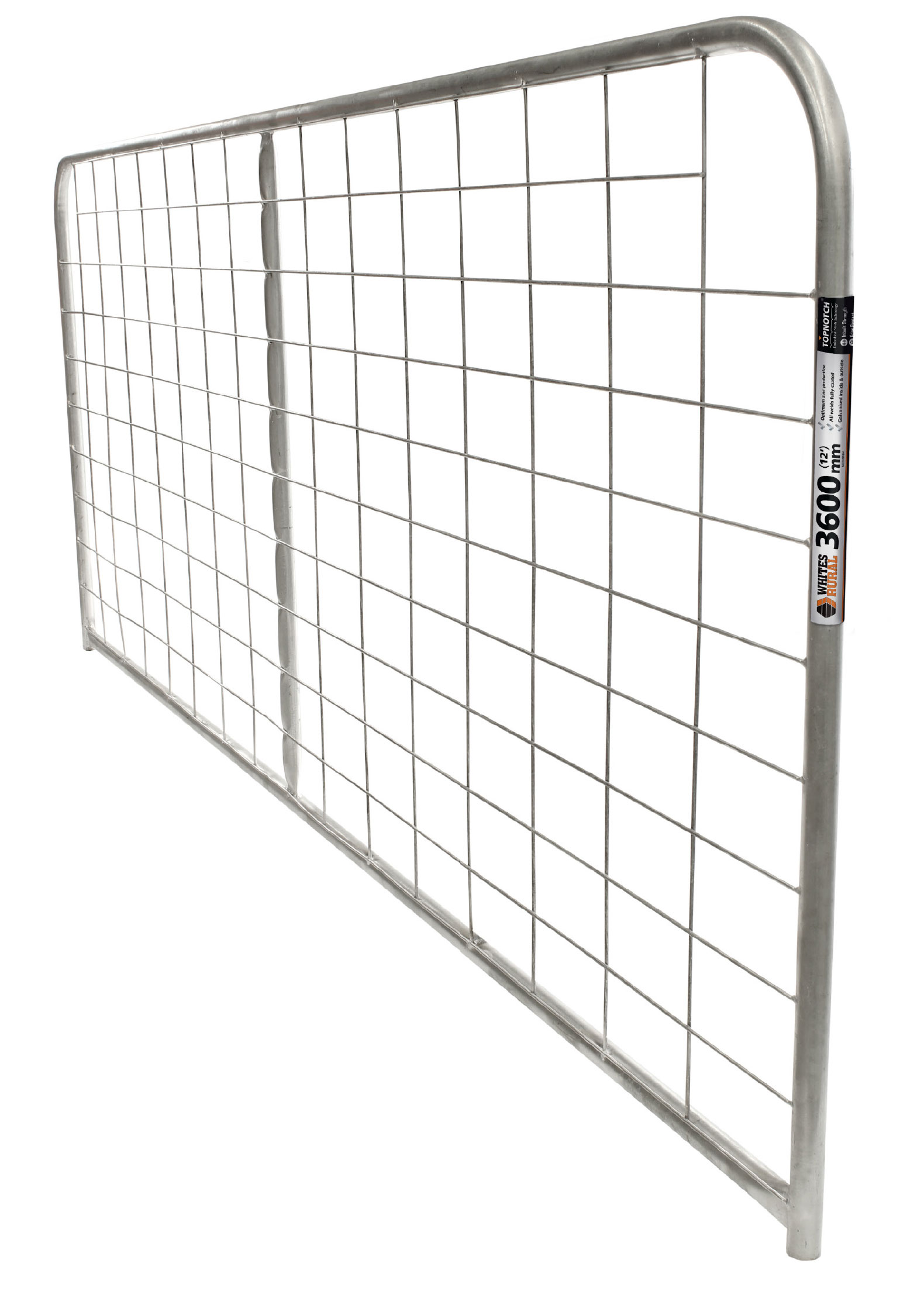

I-Stay Mesh Gates
Whites Rural I-Stay Mesh Gates are manufactured with embedded mesh that sits inside of the gate. Along with end welds that are smooth and flush with the pipe, it makes for a stronger, safer and faster hanging gate.
Featuring:
– Inbuilt Strength: embedded wire mesh increases strength and improves durability
– Edge Protect: safer for hands and livestock; no sharp edges
– Fast Fit: no need to cut wire mesh; hinges fit fast
Whites Rural I-Stay Mesh Gates are made to exacting standards from some of the best materials available, quality tested to ensure trouble-free fencing that is designed to last.
Also available pre-fitted with collars recognising the specific requirements of the WA rural market.
Specifications
Product Name | Product Code | Stay Type | Nominal mm (ft) | Actual mm | Mesh mm | Height (mm) | Frame/Stay Pipe | Weight (kg) | WR I-Stay Mesh Gates | 13122 | - | 875mm (28) | 825mm | 200x100x5 | 1145 | 25NB/ - | 8 | WR I-Stay Mesh Gates | 13123 | - | 1075 (33') | 1025mm | 200x100x5 | 1145 | 25NB/ - | 9 | WR I-Stay Mesh Gates | 13124 | - | 1220 (4'0") | 1170mm | 200x100x5 | 1145 | 25NB/ - | 10 | WR I-Stay Mesh Gates | 13105 | - | 1525(5'0") | 1475mm | 200x100x5 | 1145 | 25NB/ - | 13 | WR I-Stay Mesh Gates | 13106 | - | 1830(6'0") | 1780mm | 200x100x5 | 1145 | 25NB/ - | 14 | WR I-Stay Mesh Gates | 13108 | "I" | 2440(8'0") | 2390mm | 200x100x5 | 1145 | 25NB/25NB | 20 | WR I-Stay Mesh Gates | 13110 | "I" | 3050(10'0") | 3000mm | 200x100x5 | 1145 | 25NB/25NB | 22 | WR I-Stay Mesh Gates | 13112 | "I" | 3660(12'0") | 3610mm | 200x100x5 | 1145 | 25NB/25NB | 26 | WR I-Stay Mesh Gates | 13132 | "II" | 3660(12'0") | 3610mm | 200x100x5 | 1145 | 25NB/25NB | 29 | WR I-Stay Mesh Gates | 13114 | "II" | 4270(14'0") | 4220mm | 200x100x5 | 1145 | 25NB/25NB | 31 | WR I-Stay Mesh Gates | 13116 | "II" | 4880mm (16'0) | 4830mm | 200x100x5 | 1145 | 25NB/25NB | 36 | WR I-Stay Mesh Gates | CollaredI-Stay (WA only) | WR I-Stay Mesh Gates | 13403 | - | 1000 | 1025mm | 200x100x5 | 1145 | 25NB/ - | 9 | WR I-Stay Mesh Gates | 13404 | - | 1200 | 1170mm | 200x100x5 | 1145 | 25NB/ - | 10 | WR I-Stay Mesh Gates | 13405 | - | 1500 | 1475mm | 200x100x5 | 1145 | 25NB/ - | 13 | WR I-Stay Mesh Gates | 13406 | - | 1800 | 1780mm | 200x100x5 | 1145 | 25NB/ - | 14 | WR I-Stay Mesh Gates | 13408 | "I" | 2400 | 2390mm | 200x100x5 | 1145 | 25NB/25NB | 20 | WR I-Stay Mesh Gates | 13410 | "I" | 3000(10'0) | 3000mm | 200x100x5 | 1145 | 25NB/25NB | 22 | WR I-Stay Mesh Gates | 13412 | "I" | 3600(12'0") | 3610mm | 200x100x5 | 1145 | 25NB/25NB | 26 | WR I-Stay Mesh Gates | 13414 | "II" | 4200(14'0") | 4220mm | 200x100x5 | 1145 | 25NB/25NB | 31 | WR I-Stay Mesh Gates | 13416 | "II" | 4800 (16'0") | 4830mm | 200x100x5 | 1145 | 25NB/25NB | 36 |
---|
