WR N-Stay Mesh Gates
- Mesh apertures 190mm W, 45mm H (lower) and 90mm H (upper)
- All pipe is a uniform 25NB
- All height – 1145mm
- Zinc-based coating completely covers pipe & welds
- Supplied with our ‘Shut the gate mate’ sign
Product Details
Increased strength and protection

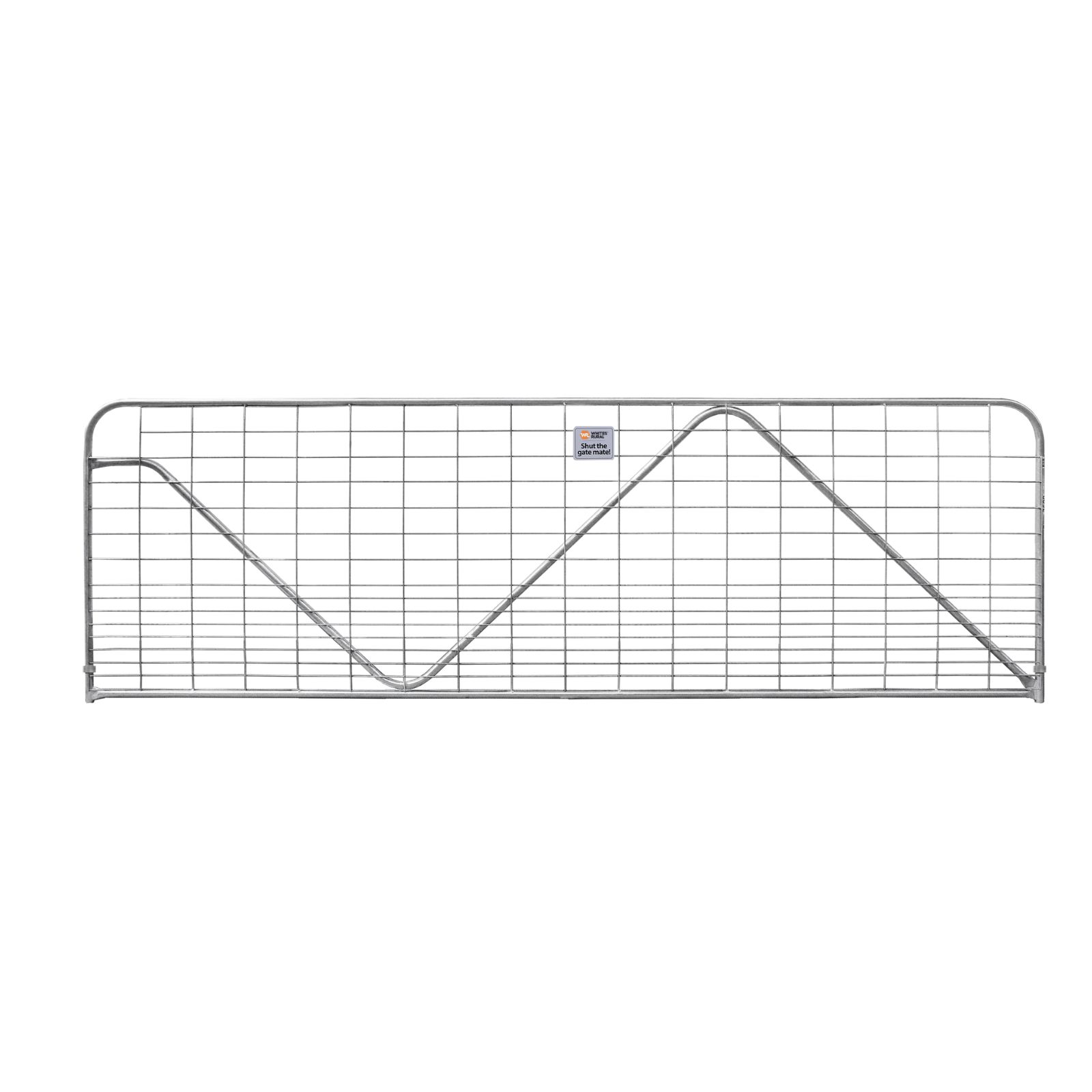

Whites Rural “N” Stay Farm Gates feature a tighter Whites Rural ‘N’ Stay Farm Gates feature a tighter mesh size for increased strength and protection. With a diagonal support brace running from the bottom to top corner, the range is available in left and right hand options. (pack of 6 – 3L / 3R)
- Variable mesh size for increased strength and protection
- Mesh apertures 190mm W, 45mm H (lower) and 90mm H (upper)
- All pipe is a uniform 25NB whilst Zinc-based coating completely covers pipe and welds
- Featuring a diagonal support brace running from the bottom to top corner
- Available in left and right hand options (pack of 6 – 3L / 3R)
- Also available pre-fitted with collars for hanging, recognising the specific requirements of the WA rural market.
Specifications
Product Name | Product Code | Stay Type | Nominal mm (ft) | Actual mm | Height (mm) | Aperture (mm) | Wire Diameter (mm) | Frame/Stay Pipe | Weight (kg) | WR N-Stay Mesh Gates | 13310 | "I" | 3050(10'0") | 3000 | 1145 | T: 195x90 B: 195x45 | 5 | 25NB/25NB | 27 | WR N-Stay Mesh Gates | 13312 | "N" | 3660(12'0") | 3610 | 1145 | T: 195x90 B: 195x45 | 5 | 25NB/25NB | 30 | WR N-Stay Mesh Gates | 13314 | "N" | 4270(14'0") | 4220 | 1145 | T: 195x90 B: 195x45 | 5 | 25NB/25NB | 34 | WR N-Stay Mesh Gates | 13316 | "N" | 4880mm (16'0) | 4830 | 1145 | T: 195x90 B: 195x45 | 5 | 25NB/25NB | 38 |
---|
